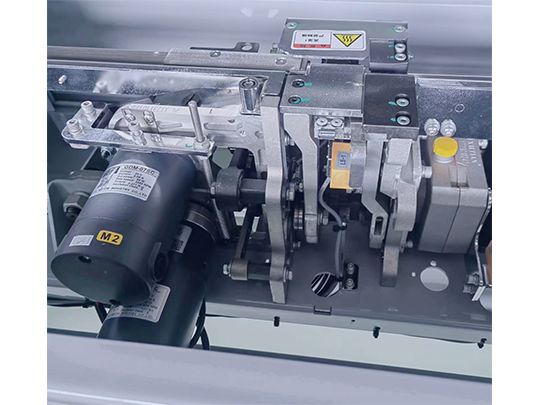

● Japan Technology Heat-weld sealing unit
● Strap end detection with ejection of remaining strap technology
● Built for 24 hours continuous operation
● Flexible Straps transmission tunnel achieve straps Quick moving inside .

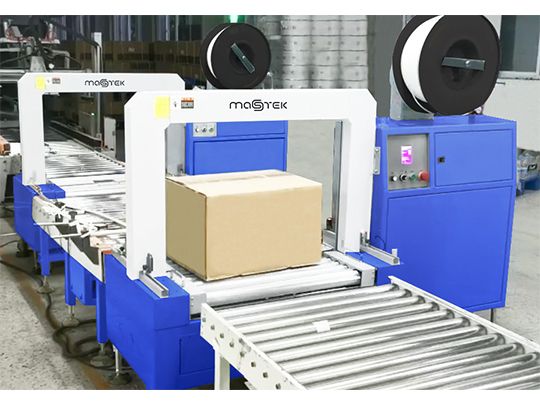

● Conveyor system achieve continuous
● Quick strap coil change and threading system, Slove straps get stuck issue NO need straps threading again working
● Adjustable strap tension via switch

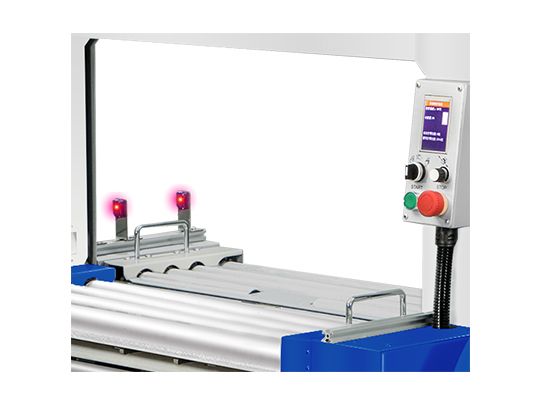

● Digital Screen Show temperature, tension &strapping times
● Senseor Detect Products automatic, fully automatic strapping 2 or 3 straps .
Parcel & Logistics Caron Box | Piece Goods Building Materials | Book&Newsaper Print Media | Food & Beverage Plastic container |
 |  |  |  |
| TECHNICAL DATA | STANDARD FEATURES | ||||||||||
| Performance: | Motor type | DC motor | |||||||||
| For Standard 1 (600x500mm)Frame Size | Control type | PCB III | |||||||||
| Maximum strapping size | 600 x 450mm | Sealing method | Heat-weld sealing | ||||||||
| Minimum strapping size | 100 x50mm | Machine cutter | SKS-5 | ||||||||
| Strapping speed | </= 1.5 s/Strap | Heating Device | Nickel-chromium alloy material | ||||||||
| Tension range | 10-400N | Tension Temperature information | Show via LCD Screen | ||||||||
| Frame Sizes: (WxH) | E-Stop Switch | Schneider | |||||||||
| Standard 1 | 600 x 500mm | operation Way 1 | Turnable panel | ||||||||
| Standard 2 | 800 x 600mm | operation way 2 | Foot pedal | ||||||||
| Standard 3 | 1250 x 600mm | castors of machine | 4 are lockable | ||||||||
| Table height | 750－800mm | strap tension | Adjustable via electric switch | ||||||||
| Straps | |||||||||||
| PP straps width | 9/12mm | ||||||||||
| PP straps thickness | 0.35mm-0.65mm | ||||||||||
| Strap Coil Dispenser: | |||||||||||
| Coil Width | 200mm | Certification | CE | ||||||||
| Coil Inner diameter | 200mm | Machine Warranty | 1 year | ||||||||
| Maximum roll diameter | 450mm | ||||||||||
| Electricity: | Optional | ||||||||||
| Power consumption: | 500W | ①Table Height 450-500mm | Model :MK50p | ||||||||
| Voltage | 220V/50Hz 1phase | ②Pneumatic type top pressure | Model:MK50/60p-TP | ||||||||
| Machine weight | 140KG | ③Frame size | According to customer size | ||||||||
| Machine size | 1255*700*1400mm | ④Conveyor system | 35/min belt conveyor | ||||||||

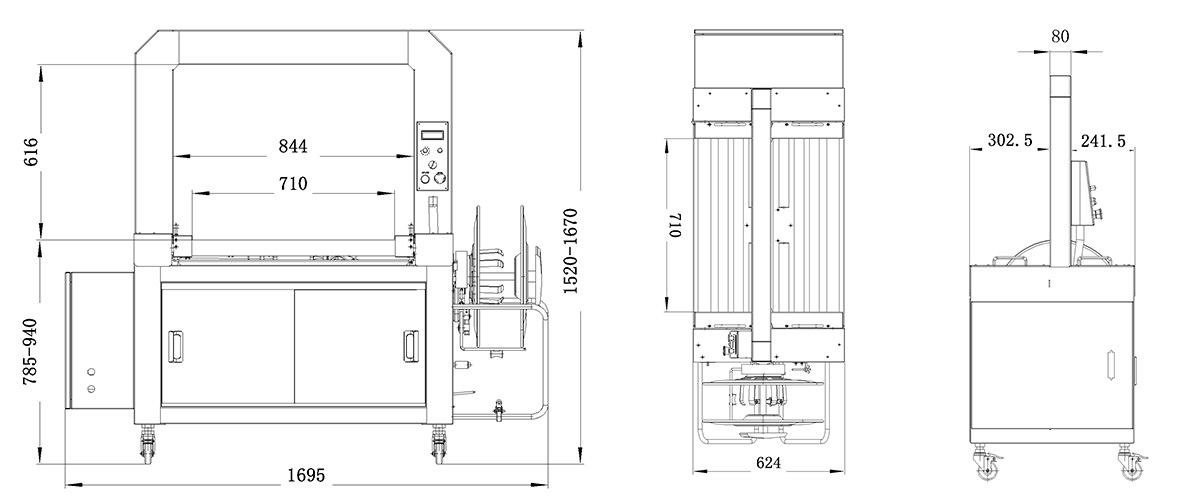

DIMENSIONS OF MACHINE (in mm)
Option Description:

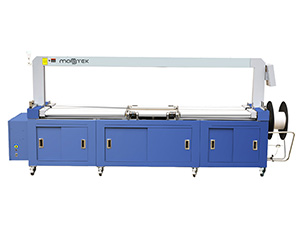

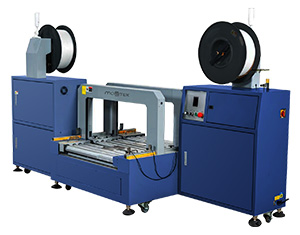

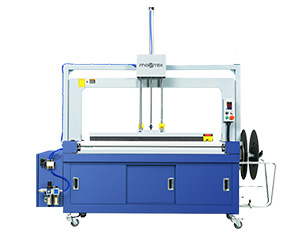

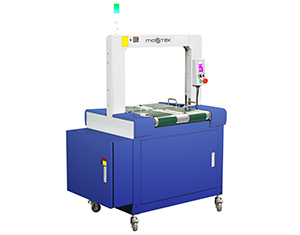

Option ① Model: MK50 Low table 450mm | Option ② Model: MK50/60-TP Pneumatic type top pressure | Option ③ Model: MK60-VS Vertical sealing frame | Option ④ Model: MK50-HS Horizontal sealing frame |
 |  |  |  |
