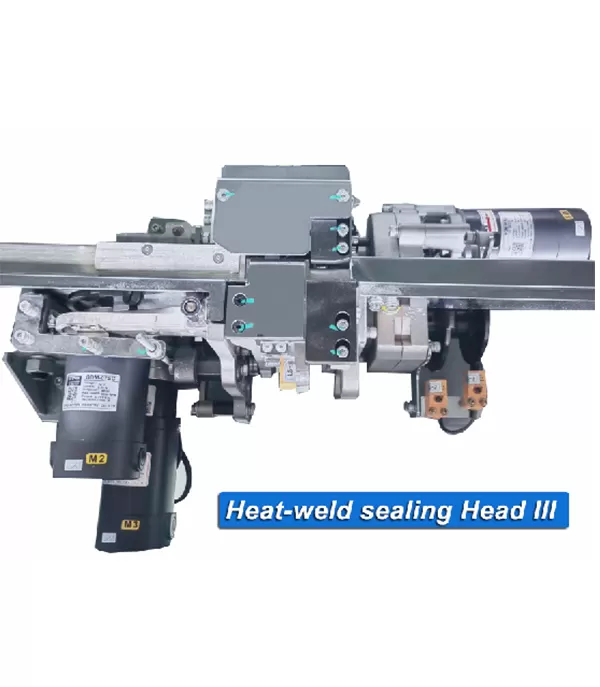

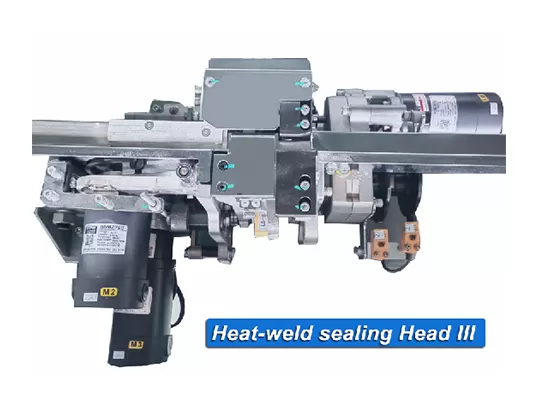

● Japan Technology Heat-weld sealing unit
● Strap end detection with ejection of remaining strap technology
● Built for 24 hours continuous operation
● Flexible Straps transmission tunnel achieve straps Quick moving inside.

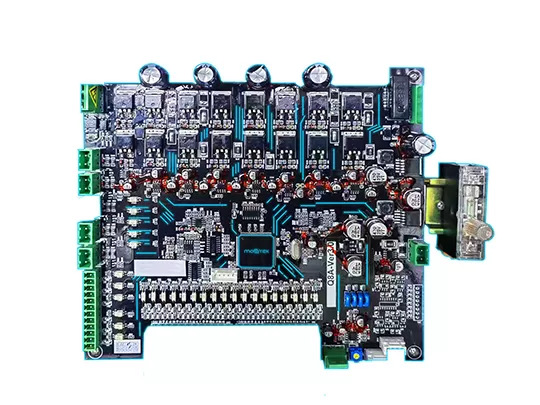

● Advanced PCB Control technology: 1.5s /strap
● Quick strap coil change and threading system, Slove straps get stuck issue NO need straps threading again.
● Adjustable strap tension via switch
● Digital Screen Show temperature, tension &strapping times

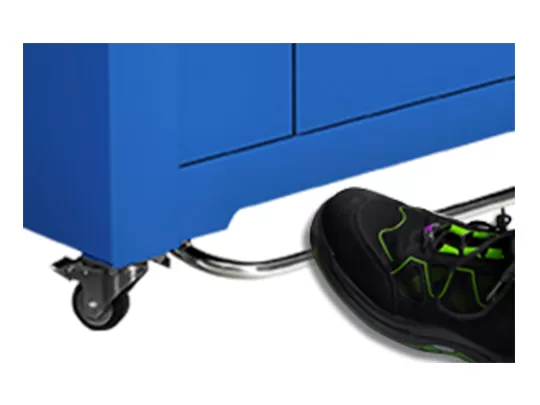

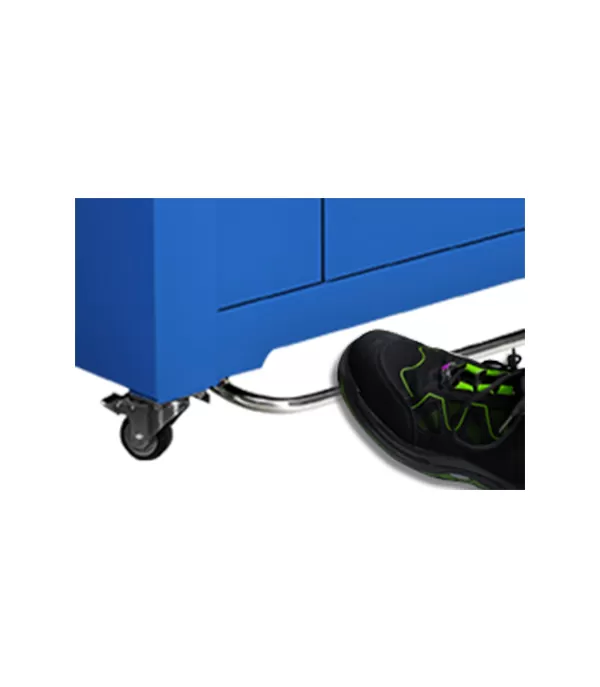

● Turnable operation panel and additional foot pedal for convenient operation
APPLICATIONS
| Caron Box Parcel & Logistics | Piece Goods Cloth raw materials | Book & Newspaper Print Media | Bundling of Goods New way for bottle packaging |
 |  |  |  |
| TECHNICAL DATA | STANDARD FEATURES | ||||||||||
| Performance: | Motor type | DC motor | |||||||||
| For Standard 1 (600x500mm)Frame Size | Control type | PCB III | |||||||||
| Maximum strapping size | 600 x 450mm | Sealing method | Heat-weld sealing | ||||||||
| Minimum strapping size | 100 x50mm | Machine cutter | SKS-5 | ||||||||
| Strapping speed | </= 1.5 s/Strap | Heating Device | Nickel-chromium alloy material | ||||||||
| Tension range | 10-400N | Tension Temperature information | Show via LCD Screen | ||||||||
| Frame Sizes: (WxH) | E-Stop Switch | Schneider | |||||||||
| Standard 1 | 600 x 500mm | operation Way 1 | Turnable panel | ||||||||
| Standard 2 | 800 x 600mm | operation way 2 | Foot pedal | ||||||||
| Standard 3 | 1250 x 600mm | castors of machine | 4 are lockable | ||||||||
| Table height | 750－800mm | strap tension | Adjustable via electric switch | ||||||||
| Straps | |||||||||||
| PP straps width | 9/12mm | ||||||||||
| PP straps thickness | 0.35mm-0.65mm | Certification | CE | ||||||||
| Strap Coil Dispenser: | Machine Warranty | 1 year | |||||||||
| Coil Width | 200mm | ||||||||||
| Coil Inner diameter | 200mm | Optional | |||||||||
| Maximum roll diameter | 450mm | ①Table Height 450-500mm | Model :MK50 | ||||||||
| Electricity: | ②Pneumatic type top pressure | Model:MK50/60-TP | |||||||||
| Power consumption: | 500W | ③Vertical sealing frame | Model :MK60-VS | ||||||||
| Voltage | 220V/50Hz 1phase | ④Horizontal sealing frame | Model :MK50-HS | ||||||||
| Machine weight | 140KG | ⑤Straps width | 5mm (only size ) | ||||||||
| Machine size | 1255*700*1400mm | ⑥Frame size | According to customer size | ||||||||
DIMENSIONS OF MACHINE (in mm)
Option Description:

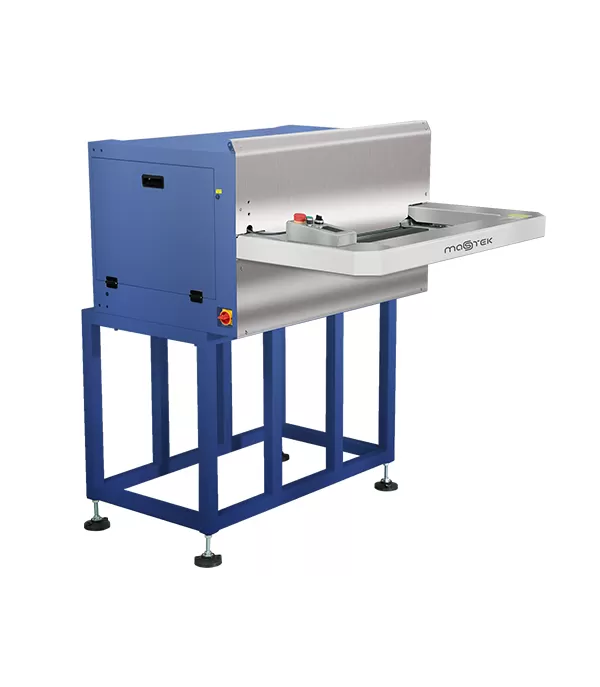

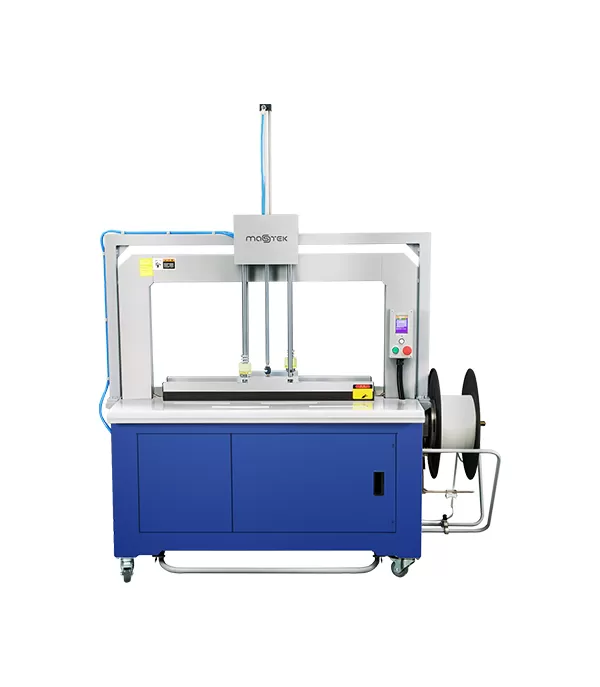

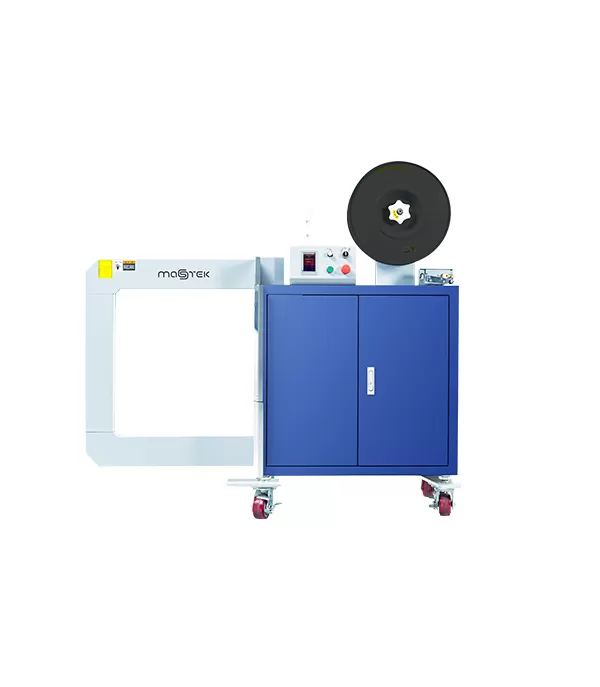

Option①Model: MK50 Lowtable 450mm | Option②Model: MK50/60-TP Pneumatic type top pressure | Option③ Model: MK60-VS Vertical sealing frame | Option④ Model: MK50-HS Horizontal sealing frame |
 |  |  |  |
