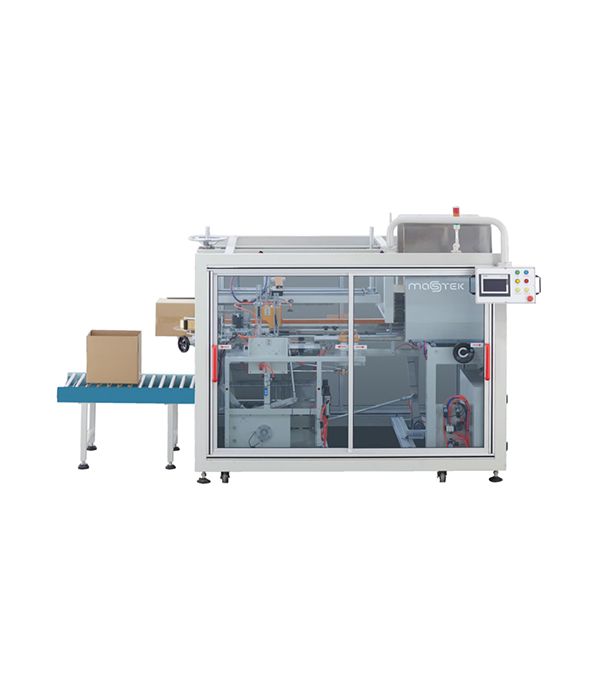

Fast Load Magazine

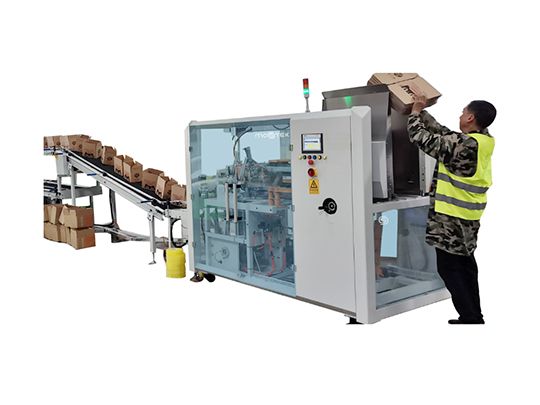

1.NON STOP Loading Magazine design: Replenish blanks while machine operates. There is no need to stop machine to load magazine, which is more convenient for operator and the working efficiency also been improved.
2.Pre-caution for empty carton box
FAST Exchange Tape Design
1. With a protective door, it is convenient and safe to change the tape when opening the door.
2.Pre-caution：Alarm before the tape is used up, inform the operator to replace the tape in time
FAST Carton Forming System (up to 30ctn/mins)

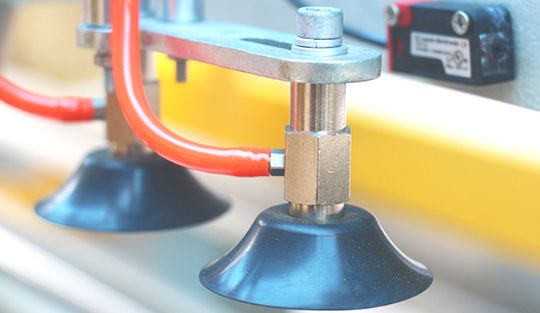

1. Top and Bottom 4 powered sucker for erecting box

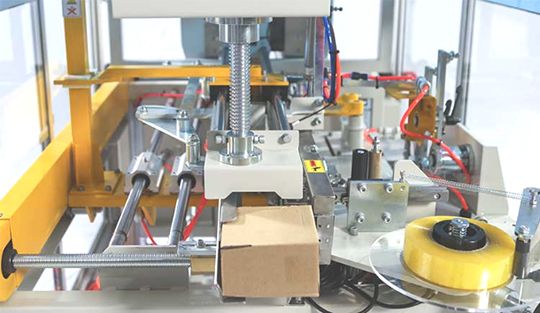

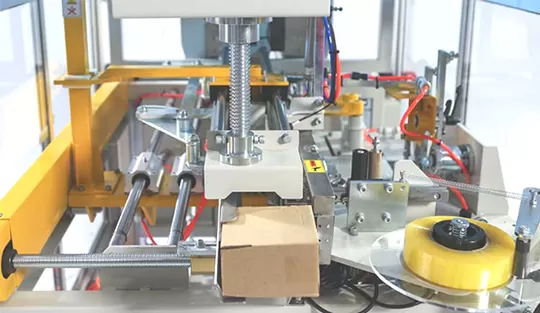

2. continuous bottom fold system, rapid forming the box with bottom seal.
| TECHNICAL DATA | STANDARD FEATURES | ||||||||||
| Performance: | Cylinder | AIRTAC | |||||||||
| Throughput Speed | 25-30 Cases/Minute | Motor | GPG | ||||||||
| Sensor | OMRON | ||||||||||
| Case (Outside Dimensions) | 250-500 mm L 200-400 mm W 120-400mm H | PLC | SIEMENS | ||||||||
| Touch Screen | SIEMENS | ||||||||||
| Pre-caution for blank carton box | |||||||||||
| Case Types | Pre-caution forTape used up | ||||||||||
| Wall Types | Single & Double Wall (test for multiple wall) | NON -STOP load magazine design | |||||||||
| Safety door system | |||||||||||
| Bottom Seal | Horizontal forming box output | ||||||||||
| Tape | 48-72mm | ||||||||||
| Service Requirements | Certification | CE | |||||||||
| Air Supply | 6 Bar (80 Psi) | Machine Warranty | 1 year | ||||||||
| Dedicated Electric | 220V, 1ph, 50/60Hz | ||||||||||
| Machine Data | Optional | ||||||||||
| Magazine infeed Capacity | 100 cases (approximate) | Bottom seal | Hot glue | ||||||||
| Weight | 600 kg | For Samll size box (48mm tape 15-20 ctn/min) | Length: 130-280mm Width: 80-200mm Height: 90-200mm | ||||||||
| Dimensions | 2200*1329*1926 mm L*W*H | ||||||||||
| Outfeed Pass Height | 950 mm +/- 10 mm | ||||||||||

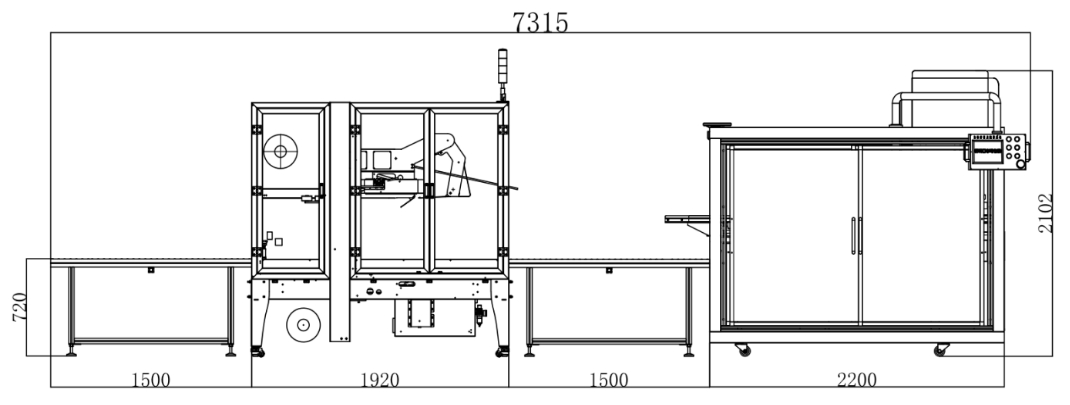

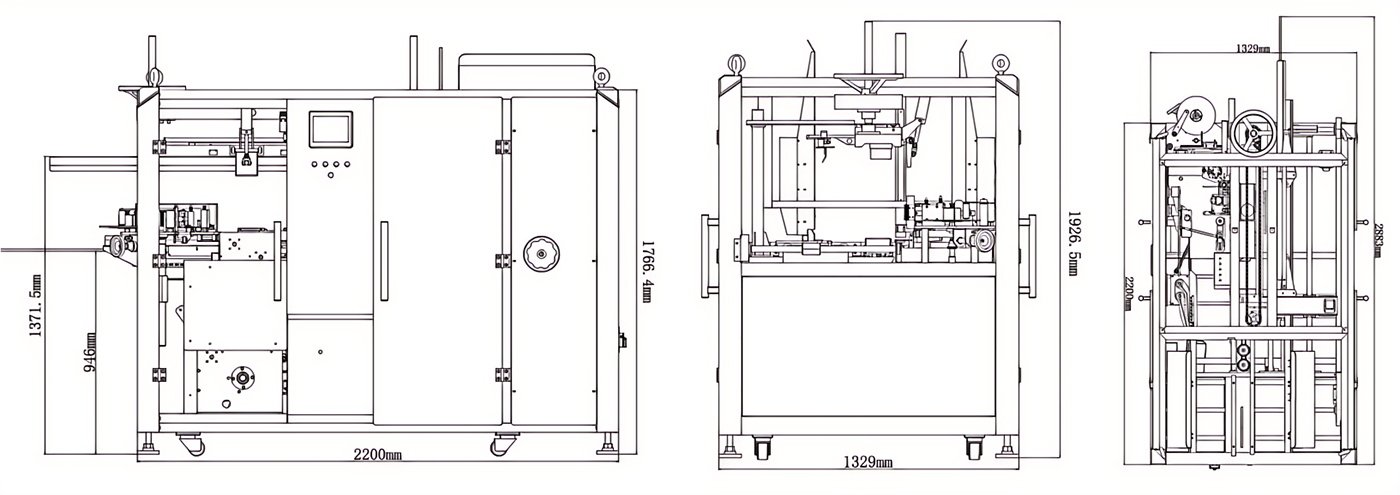

Engineer Drawing
Packaing Line
